A-A-59832/7 Extractor, Electrical Card, Metal, Non-Locking, Single-Sided Actuation, Narrow Profile, Angled Actuating Handle, With Release Tab, for .032, .063, .094, .125, and .156 Inch Thick Circuit Card Assemblies

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21

A�A�59832/7

Inches

.003

0.08

.020

0.51

.125

3.18

.16

4.06

.360

9.14

.005

0.13

.093

2.36

.156

3.96

.18

4.57

1.00

25.4

.35

8.89

1.50

38.1

NOTES:

1. Dimensions are in inches. Millimeter equivalents are given for general information only.

2. Unless otherwise specified, tolerances are �.02 inch (0.51 mm) for two place decimals and �.010 inch

(0.25 mm) for three place decimals.

3. Depth dimension is .29 inch (7.4 mm) for extractors from CAGE 61081 and CAGE 5GB68.

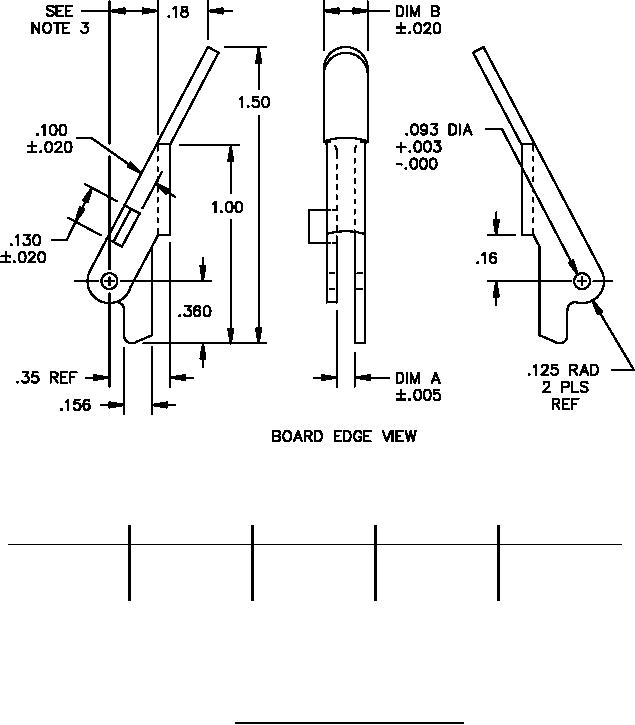

FIGURE 1. Configuration L dimensions (left hand).
