A-A-59832/7 Extractor, Electrical Card, Metal, Non-Locking, Single-Sided Actuation, Narrow Profile, Angled Actuating Handle, With Release Tab, for .032, .063, .094, .125, and .156 Inch Thick Circuit Card Assemblies

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


A­A­59832/7
APPLICATION DATA.
Extractor orientation with circuit card assembly printed board. Figures 7 and 8 show the extractor mounted to a
circuit card assembly and installed into a lever actuated card guide from different views. Figure 7 depicts one straight
on and two angled views of a right hand extractor fastened to the printed board of a circuit card assembly. Figure 8
depicts a right side view of a circuit card assembly with a right hand extractor fastened to the printed board.

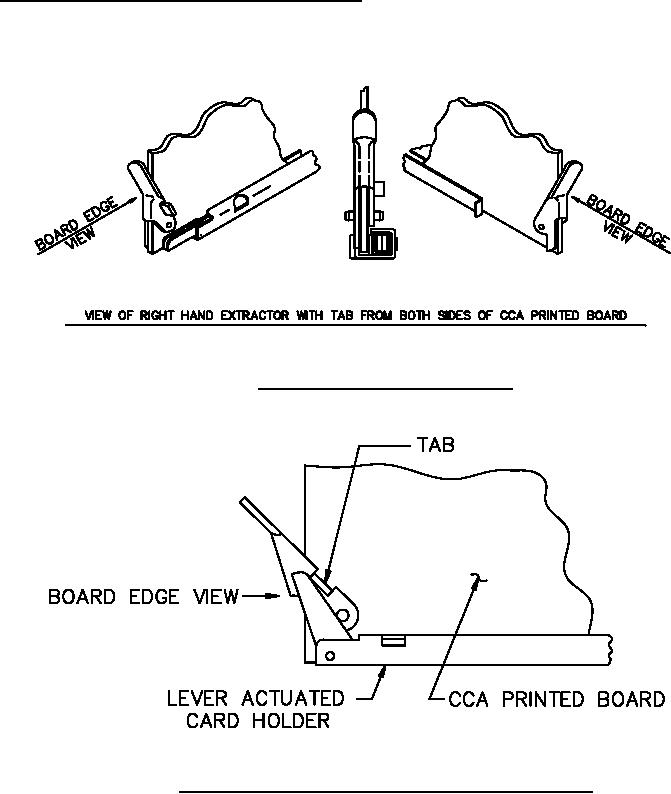

FIGURE 7. Extractor fastened to circuit card assembly.
FIGURE 8. Circuit card assembly to card guide view (right hand extractor shown).
9
