AA59832/7
NOTES:
1. The SED symbol displayed on the extractor handles shall be in accordance with AA59832.
2. Unless otherwise specified, a monochromatic reproduction of the symbol displayed in AA59832
using any color that contrasts with the color of the extractor handle may be used.

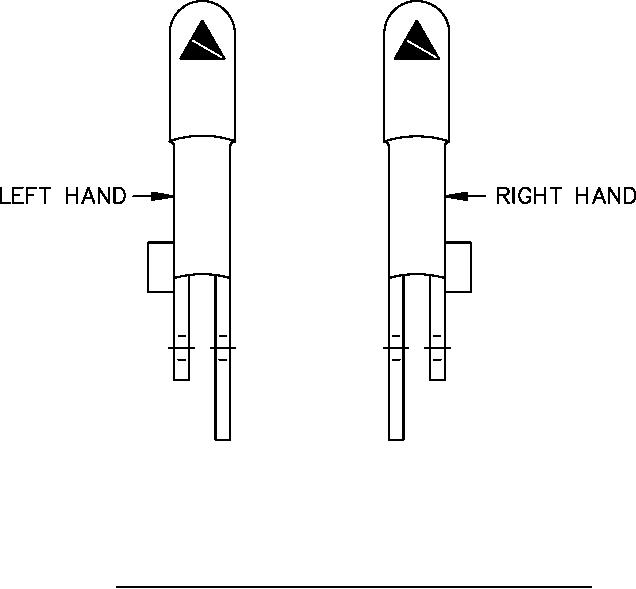

FIGURE 2. Configurations K and S with SED symbol on extractor handle (board edge view).
4
