A-A-59832/8 Extractor, Electrical Card, Metal, Non-Locking, Single-Sided Actuation, Narrow Profile, Straight Actuating Handle, with Release Tab, for .032, .063, .094, .125 and .156 Inch Thick Circuit Card Assemblies

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


. .
A­A­59832/8
NOTES:
1.  The SED symbol displayed on the extractor handles shall be in accordance with A­A­59832.
2.  Unless otherwise specified, a monochromatic reproduction of the symbol displayed in A­A­59832
using any color that contrasts with the color of the extractor handle may be used.

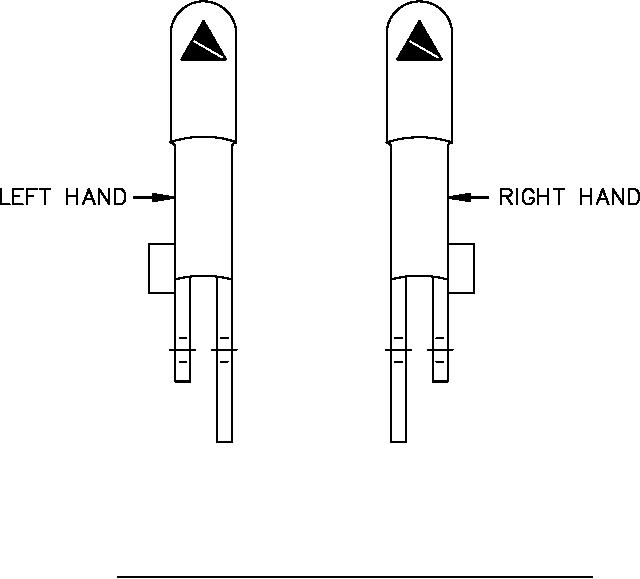

FIGURE 2. Configurations K and S with SED symbol on extractor handle (board edge view).
4
