A-A-59832/8 Extractor, Electrical Card, Metal, Non-Locking, Single-Sided Actuation, Narrow Profile, Straight Actuating Handle, with Release Tab, for .032, .063, .094, .125 and .156 Inch Thick Circuit Card Assemblies

1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21


A­A­59832/8
APPLICATION DATA.
Extractor orientation with circuit card assembly printed board. Figures 7 and 8 show the extractor mounted to a
circuit card assembly and installed into a lever actuated card guide from different views. Figure 7 depicts one straight
on and two angled views of a right hand extractor fastened to the printed board of a circuit card assembly. Figure 8
depicts a right side view of a circuit card assembly with a right hand extractor fastened to the printed board.

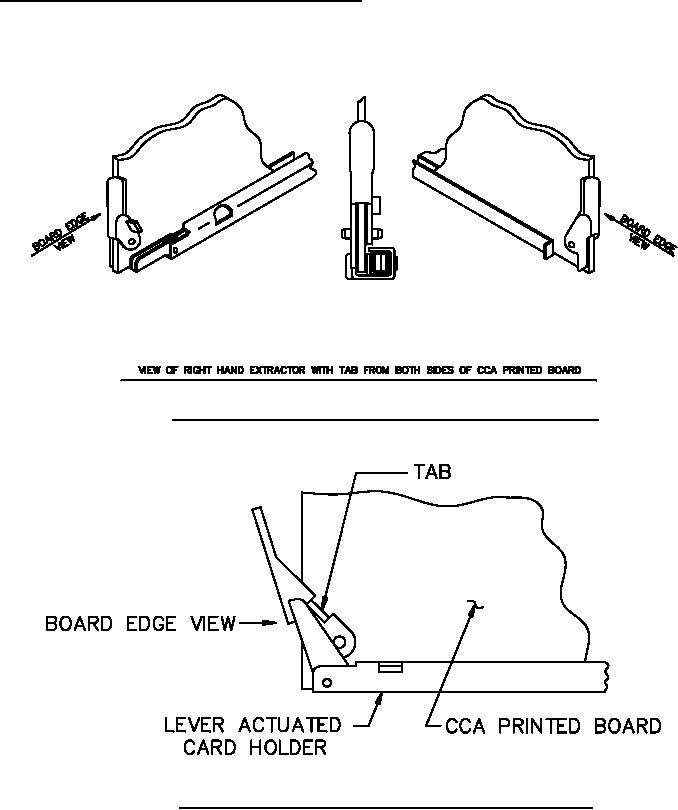

FIGURE 7. Extractor fastened to circuit card assembly (right hand extractor shown).
FIGURE 8. Circuit card assembly to card guide view (right hand extractor shown).
9
