MIL­PRF­55110G
APPENDIX A

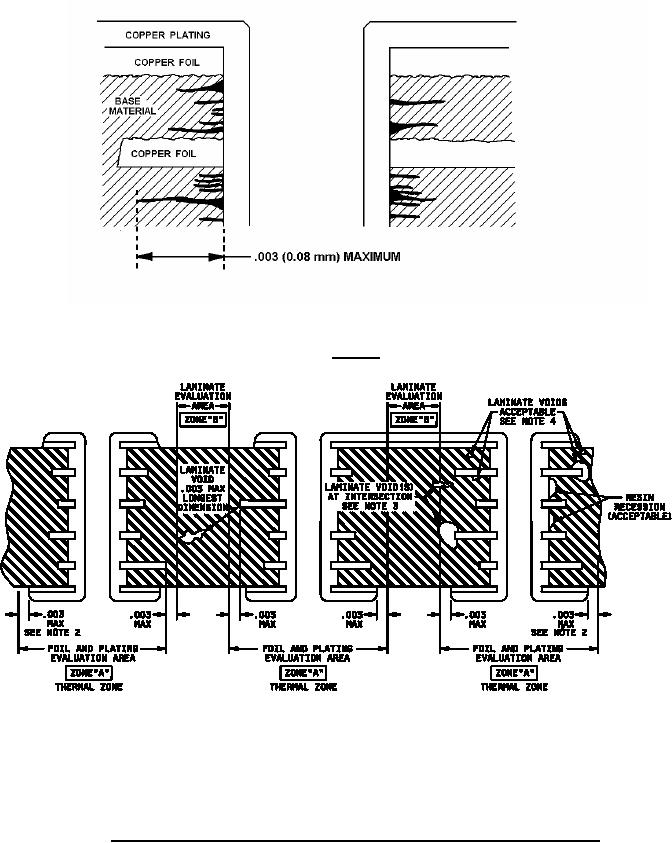

figure A­10 FIGURE A­10
FIGURE A­10. Wicking.
figure A­11 FIGURE A­11
NOTES:
1.
Dimensions are in inches. Millimeter equivalents are given for general information only.
2.
Typically beyond land edge most radially extended.
3.
Voids at intersection of zone A and zone B. Laminate voids greater than .003 inch (0.08 mm)
that extend into zone B are rejectable.
4.
Laminate voids are not evaluated in zone A.
FIGURE A­11. Typical plated-through hole cross section after thermal stress or rework simulation.
48
