6.5 Historical data. Historically, ATPD 2146, dated 9 March 1988, was superseded by
MIL-P-62740(AT).
6.6 Subject term (key word) listing.
Automatic Testing Equipment (ATE) test
Ignition inhibits
Ignition signal outputs
Simplified Test Equipment/Internal Combustion Engine - Reprogrammable (STE/ICE-R)
Vehicle Test Meter (VTM)
6.7 Changes from previous issue. Marginal notations are not used in this revision to
identify changes with respect to the previous issue due to the extent of the changes.
H
P1-31
IOB/3
L
0 ns MIN.
H
P1-37
0 ns MIN.
OEN-Q\
L
250 ns M A X .
H
U27-4
250 ns M A X .
L
H= LOGIC LEVEL1
L= LOGIC LEVEL0

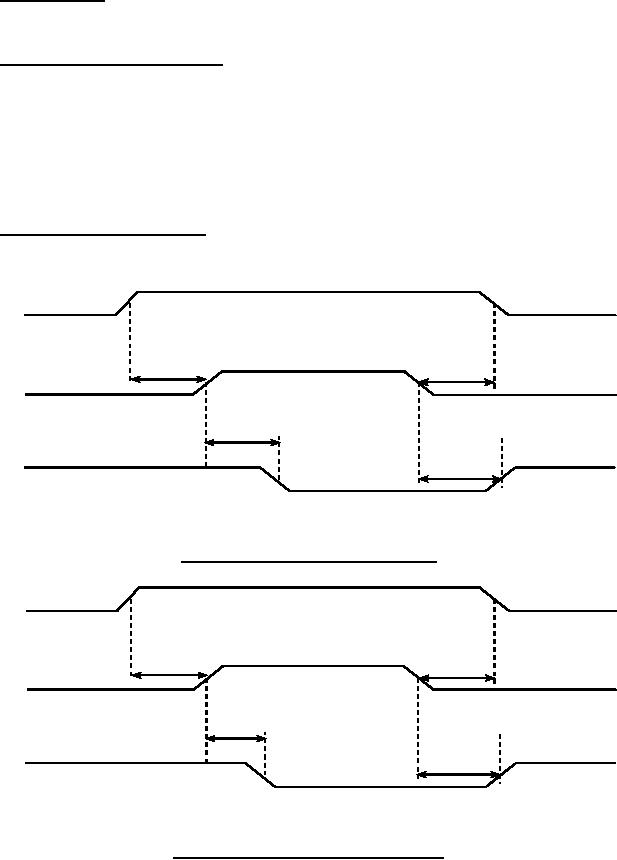

FIGURE 1. Waveform to generate U27-4 clock.
H
P1-32
IOC/4
L
0 ns MIN.
H
P1-37
0 ns MIN.
OEN-Q\
L
250 ns MAX.
H
U27-11
250 ns MAX.
L
H= LOGIC LEVEL1
L= LOGIC LEVEL0
FIGURE 2. Waveforms to generate U27-11 clock.
